Stainless steel angle steel



+86 13685310104



info@rendasteel.com

Product introduction

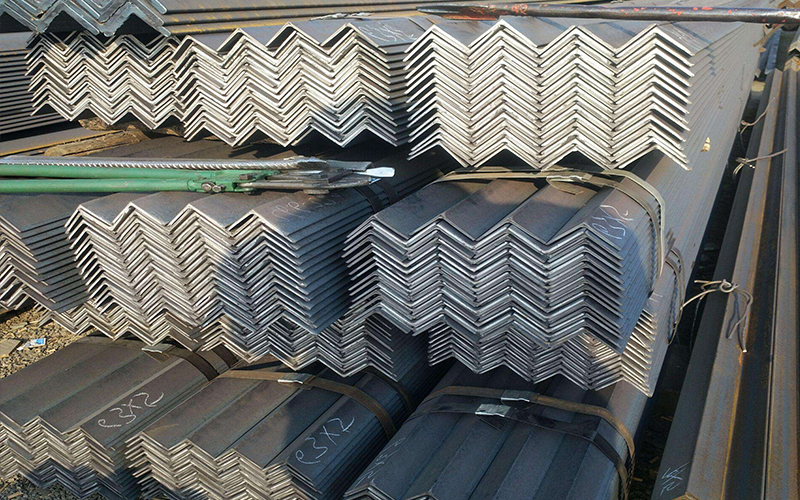

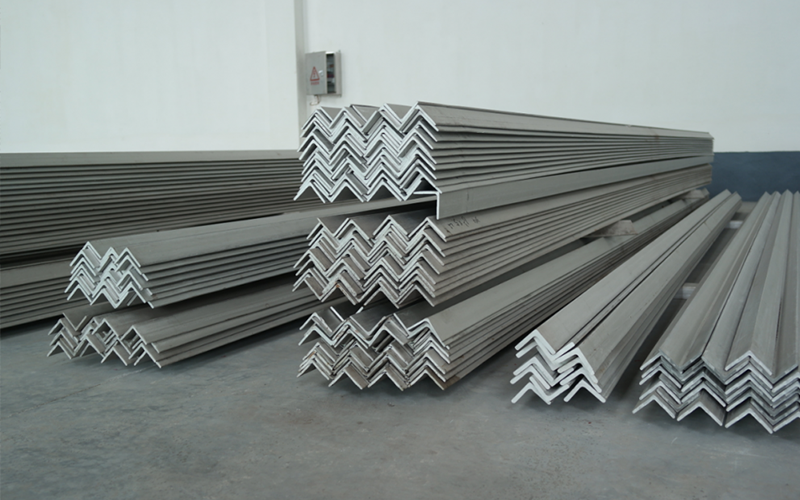

Stainless steel angles, both laser fused and hot rolled, are a popular structural shape that see many uses and applications in the steel industry. Stainless Structurals can produce angle sizes from a 3/16” thickness all the way up to a 1.5” thickness with a full penetration weld.

Dimensions	50374.5-40010414.5
	75403.87-152766.49
	14060710-200758.511.5
Length	6m, 9m, 12m or as customerrequirement
Technology	Hot rolled
Standard:	ASTM，AISI，JIS，GB， DIN，EN
Surface	Galvanized, paint；or as your request
Supply ability	2000Ton/day
Business type	Manufacturer
Application	widely used in building structure and
Application	engineering construction, such as room beam,ship beam, industrial furnace, etc.
Loading port	any port in China
Packing	standard export packing or as your requirement
Payment Terms	T/T, L/C at sight,West Union,D/P,D/A,Paypal
Container size	20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
	40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
	40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)

Inspection equipment

The production process of all products will be strictly controlled, and all products can accept the quality inspection of professional third-party testing institutions to ensure that each product meets the quality standards.

Material introduction

Stainless steel is an alloy of iron that is resistant to rusting and corrosion. It contains at least 11% chromium and may contain elements such as carbon and other nonmetals to obtain other desired properties. Stainless steel's resistance to corrosion results from the chromium, which forms a passive film that can protect the material and self-heal in the presence of oxygen.

The alloy's properties, such as luster and resistance to corrosion, are useful in many applications. Stainless steel can be rolled into sheets, plates, bars, wire, and tubing. These can be used in cookware, cutlery, surgical instruments, major appliances, vehicles, construction material in large buildings, industrial equipment (e.g., in paper mills, chemical plants, water treatment), and storage tanks and tankers for chemicals and food products.

The biological cleanability of stainless steel is superior to both aluminium and copper, and comparable to glass. Its cleanability, strength, and corrosion resistance have prompted the use of stainless steel in pharmaceutical and food processing plants.

The density of stainless steel can be somewhere between 7,500kg/m3 to 8,000kg/m3 depending on the alloy.

Type	Cr	Ni	Cmax	Other Elements	Major Characteristics
303	17.00-19.00	8.00-10.00	0.15	S 0.15 min	† Free-machining modification of Type 302
303 Se	17.00-19.00	8.00-10.00	0.15	Se 0.15 min	† Free-machining version of Type 302. Produces better surface finish than Type 303.
304	18.00-20.00	8.00-10.00	0.08	–	† Low carbon variation of Type 302. Minimizes carbide precipitation during welding
304L	18.00-20.00	8.00-10.00	0.03	–	† Extra-low carbon content eliminates harmful carbide precipitation due to welding
309	22.00-24.00	12.00-15.00	0.20	–	† High strength and resistance to scaling at high temperatures
310	24.00-26.00	19.00-22.00	0.20	–	† Higher alloy content improves basic characteristics of Type 309
316	16.00-18.00	10.00-14.00	0.08	Mo 2.00-3.00	† Mo improves general corrosion and pitting resistance and high temperature strength over that of Type 302
316L	16.00-18.00	10.00-14.00	0.20	Mo 2.00-3.00	† Extra-low carbon version of Type 316. Eliminates harmful carbide precipitation due to welding
317	18.00-20.00	11.00-15.00	0.08	Mo 3.00-4.00	† Higher alloy content improves basic advantages of Type 316
321	17.00-19.00	9.00-12.00	0.08	Ti 5 x C. min	† Stabilized to permit use in 800-1500°F temperature range without harmful carbide precipitation
347	17.00-19.00	9.00-13.00	.008	Cb + Ta 10 x C. min	† Characteristics similar to Type 321. Stabilized by Cb and Ta.
348	17.00-19.00	9.00-13.00	0.08	Ta 0.10 max Cb 0.20 max Cb + Ta 10 x C min	† Similar to Type 347 but Ta reduced for atomic energy applications
410	11.50-13.50	-	0.15	-	¥ Lowest cost general purpose stainless steel. Wide use where corrosion is not severe.
416	12.00-14.00	-	0.15	S 0.15 min	¥ Free-machining version of Type 410.
420	12.00-14.00	-	0.15 min	-	¥ Similar variation of Type 410 but higher carbon produces higher strength and hardness.
430	14.00-18.00	-	0.12	-	* Most popular of the chromium types. Combines good corrosion and heat resistance and mechanical properties.
430 F	14.00-18.00	-	0.12	S 0.15 min	* Free-machining version of Type 430.
440A 440B 440C	16.00-18.00 16.00-18.00 16.00-18.00	-	0.60-0.75 0.75-0.95 0.95-1.20	-	¥ Series of high carbon types. Some basic composition with varying carbon content. Higher carbon produces higher strength and hardness but lower toughness. All Type 440 versions are corrosion resistant only in the hardened condition.
446	23.00-27.00	-	0.20	-	* Similar to Type 442 but Cr increased to provide maximum resistance to scaling.
15-5 PH	14.00-15.50	3.50-5.50	0.07	Cu 2.50-4.50	• Similar in properties and characteristics to 17-4 PH but has superior transverse ductility and toughness.
PH 15-7 Mo	14.00-16.00	6.50-7.75	0.09	Mo 2.00-3.00 Al 0.75-1.50	•• Special type similar to 17-7 PH but with higher strength.
17-4 PH	15.50-17.50	3.00-5.00	0.07	Cu 3.00-5.00	• Special type that combines excellent corrosion resistance…high strength and hardness… low temperature hardening and good fabrication characteristics.
17-7 PH	16.00-18.00	6.50-7.75	0.09	AL 0.75-1.25	•• Special ultra-high strength type with good formability and excellent fabricating characteristics.

Packaging & Warehouse

In order to ensure the supply of goods, we also maintain good cooperation with major steel mills in China.
